No limits to your automation ideas …

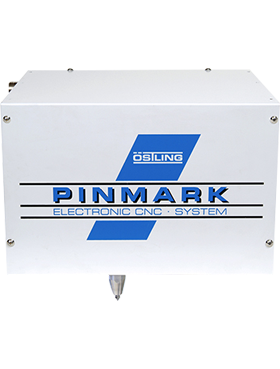

The PinMark™ series scribers are designed for the demanding requirements of industrial automation.
Whether in production lines and/or integrated into special machines, the ergonomic design of our scribe heads provides optimum results and offers an extremely robust solution to your marking needs.
In combination with our innovative control system UMC 112, the functionality of the devices can be optimally adjusted to your application. The most modern interfaces ensure flexibility and reliability, even in extreme work environments.
Spread the cost of your new scribe system with our Hire Purchase facility, from only £220 per month. Click here for more information.
Technical Data: 4/6 SP/RE
| D x B x H | 200 x 200 x 345 mm |
| Weight | 12.2 kg |
| Marking Field | 40 x 60 mm |
| Noise Level | Approx. 21 dB (A) |
| Speed | Depending on marking parameters |
| Controller | UMC 112 |
| Needle System | WE1R, WE2, WE2 4mm, WE2 long, WP2 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |
Technical Data: 8/14 SP/RE
| D x B x H | 265 x 426 x 255 mm |
| Weight | 20.5 kg |
| Marking Field | 80 x 140 mm |
| Noise Level | Approx. 21 dB (A) |
| Speed | Depending on marking parameters |
| Controller | UMC 112 |
| Needle System | WE1R, WE1, WE2, WE2 4mm, WE2 long, WE4, WP2 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |
Technical Data: 15/20 SP/RE
| D x B x H | 335 x 486 x 260 mm |
| Weight | 23.9 kg |
| Marking Field | 150 x 200 mm |
| Noise Level | Approx. 21 dB (A) |
| Speed | Depending on marking parameters |
| Controller | UMC 112 |
| Needle System | WE1R, WE1, WE2, WE2 4mm, WE2 long, WE4, WP2 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |
Technical Data: 15/30 SP/RE
| D x B x H | On Request |
| Weight | On Request |
| Marking Field | 150 x 300 mm |
| Noise Level | Approx. 21 dB (A) |
| Speed | Depending on marking parameters |
| Controller | UMC 112 |
| Needle System | WE1R, WE1, WE2, WE2 4mm, WE2 long, WE4, WP2 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |
We have a complete range of accessory parts available for you. Here are a few examples in the needle embossing-/scribing-sector:
- Rotation axes for round parts, so that the marking needle is always perfectly positioned on the object to be marked
- Vertical axes in all versions (manual, electric, pneumatic, fully automatic)
- Barcode scanner for input and activation of data to be marked
- 2D code cameras for automated reading of previously marked data
- Needle systems for the most varied applications
- Housing variants for your operating environment
- Replacement parts of all kinds…
We would be happy to discuss anything further with you personally.
