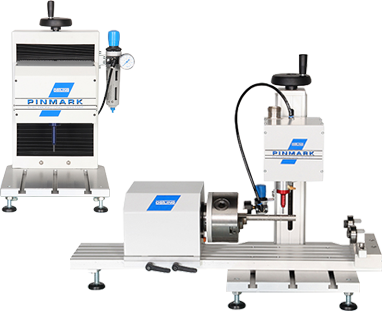

The PinMark™ needle embossers are exceptionally suitable as benchtop devices for small batches and individual units. Due to their proven robust and compact construction, you will be able to create extremely precise markings on your products or components.
The prerequisite for the use of the benchtop devices is the ability to position your products well. The height is adjusted with a hand wheel or, upon request, with an electric or pneumatic height adjustment installation (Z-axis). In combination with our innovative and proven industrial controls, the functionality of the devices is optimally adjusted to your needs.
The PinMark™ benchtop embossers primarily differ in the size of the respective inscription field.Please see the technical data of the respective models in abbreviated form below.
Please do not hesitate to contact us with any questions.
Spread the cost of your new dot peen system with our Hire Purchase facility, from only £89 per month. Click here for more information.

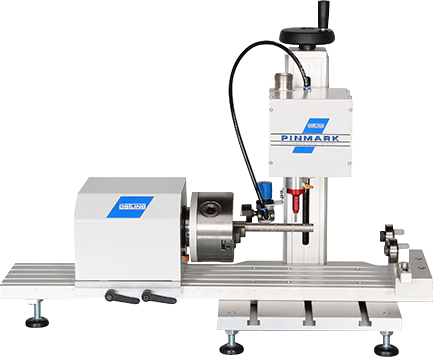

Technical Data: 3/5 T
| D x B x H | 300 x 250 x 450 mm |
| Weight | 13 kg |
| Marking field | 30 x 50 mm |
| Speed | Depending on marking parameters |
| Software | Embedded Linux |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE3, WE3 long, WP3 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |

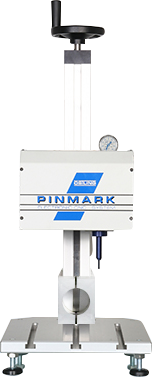

Technical Data: 5/10 T
| D x B x H | 335 x 330 x 460 mm |
| Weight | 15.5 kg |
| Marking field | 50 x 100 mm |
| Resolution | 0.1 mm |
| Speed | Depending on marking parameters |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE1, WE2, WE2 long, WE2 4mm, WP2 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |

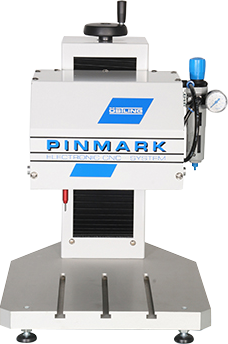

Technical Data: 8/14 T
| D x B x H | 471 x 350 x 507 mm |
| Weight | 21 kg |
| Marking field | 80 x 140 mm |
| Resolution | 0.1 mm |
| Speed | Depending on marking parameters |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE1, WE2, WE2 long, WE2 4mm, WE4, WP2 |
| Power Supply | 230 V, 50 Hz / opt. 115 V, 60 Hz |
| Compressed air | Max.6 bar, 6 mm |
We have a complete range of accessory parts available for you. Here are a few examples in the needle embossing-/scribing-sector:
- Rotation axes for round parts, so that the marking needle is always perfectly positioned on the object to be marked
- Vertical axes in all versions (manual, electric, pneumatic, fully automatic)
- Barcode scanner for input and activation of data to be marked
- 2D code cameras for automated reading of previously marked data
- Needle systems for the most varied applications
- Housing variants for your operating environment
- Replacement parts of all kinds…
We would be happy to discuss anything further with you personally.
