DeepScribe was developed due to market demand for a marking tool that can deliver very deep and long lasting markings directly onto the work piece.

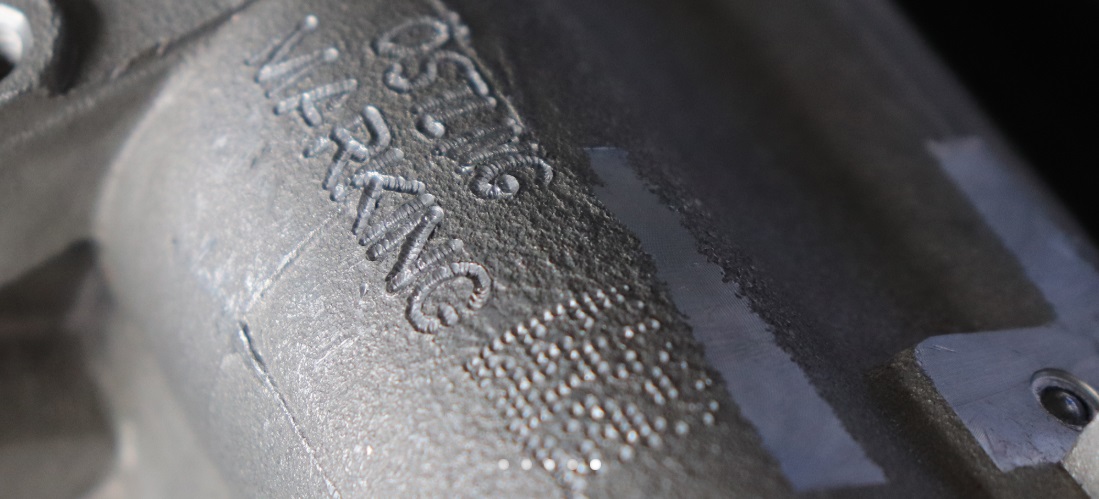

Designed for the application of VIN markings on cast iron and aluminium, such as engine blocks in the automotive industry, the marking itself is deep enough to be removed only with brute force.
The system consists of a re-developed and reinforced marking head with a new needle guide. Robust linear guides and spindle driven accentuates ensure a smooth and powerful operation. The system is low maintenance with access panels for service purposes.
Due to the heavier, more robust design of the scribe tool (needle) the rebound of the needle is now handled by a second compressed air connection. This also ensures a very accurate depth adjustment up to a depth of 8 mm.
This more powerful marking head is controlled by a modified UMC 112 controller.
Spread the cost of your new scribe system with our Hire Purchase facility, from only £220 per month. Click here for more information.
| D xW x H | 308 x 279 x 384mm |
| Weight | 30 kg |
| Marking area | 40 x 80mm |
| Noise level | Approx. 21dB (A) |
| Speed | depending on marking parameters |
| Control | modified UMC112 |
| Needle system | DeepScribe |
| Energy | 230V,50Hz / optional 115V,60Hz |
| Compressed air | Max. 4 bar, 8mm air connection |
We have a complete range of accessory parts available for you. Here are a few examples in the needle embossing-/scribing-sector:
- Rotation axes for round parts, so that the marking needle is always perfectly positioned on the object to be marked
- Vertical axes in all versions (manual, electric, pneumatic, fully automatic)
- Barcode scanner for input and activation of data to be marked

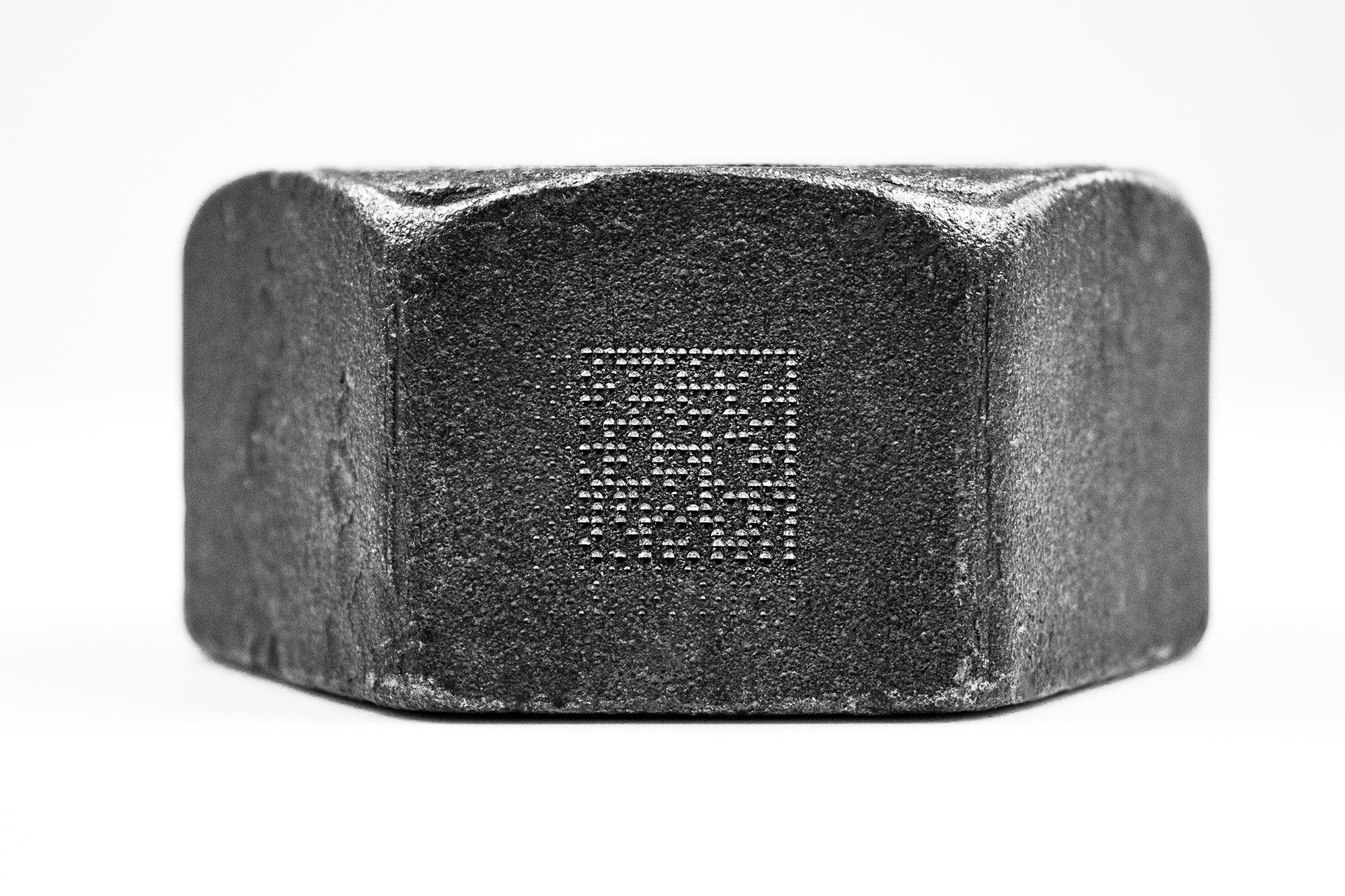

- 2D code cameras for automated reading of previously marked data
- Needle systems for the most varied applications
- Housing variants for your operating environment
- Replacement parts of all kinds…
We would be happy to discuss anything further with you personally.
