Release your automation ideas.
The PinMark™ marking heads are perfectly suited to the needs of industrial automation. Whether in production lines and/or integrated into special machines, compact dimensions and numerous possibilities for the position of the heads mean next to no compromises to your specific requirements.
In combination with our innovative and proven marking controls, the functionality of the systems is always customised to your applications. The most modern interfaces (RS-232/RS485, USB, Bluetooth) and the observance of protection classes up to IP65 ensure flexibility and reliability, even in extreme work environments.
The OSTLING marking heads primarily differ in the size of the respective inscription field. Please see the technical data of the respective models in abbreviated form below.
Please do not hesitate to contact us with any questions.
Spread the cost of your new dot peen system with our Hire Purchase facility, from only £89 per month. Click here for more information.

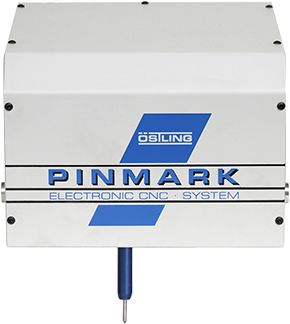

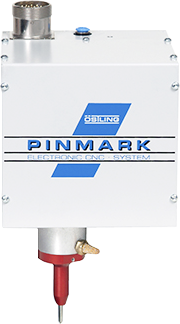

| Technical Data: 3/5 E | |
|---|---|
| D x B x H | 111 x 111 x 203 mm |
| Weight | 1,8 Kg |
| Marking field | 30 x 50 mm |
| Resolution | 0,1 mm |
| Speed | Depending on marking parameters |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE3, WE3 long, WP3 |
| Power supply | 230V, 50Hz / optional 115V, 60Hz |
| Compressed air | max.6 bar, 6 mm |
| Technical Data: 4/6 E | |
|---|---|
| D x B x H | 150 x 145 x 252 mm |
| Weight | 3.8 Kg |
| Marking field | 40 x 60 mm |
| Resolution | 0,1 mm |
| Speed | Depending on marking parameters |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE2, WE2 4mm, WE2 long, WP2 |
| Power supply | 230V, 50Hz / optional 115V, 60Hz |
| Compressed air | max.6 bar, 8 mm |
| Technical Data: 5/10 E | |
|---|---|
| D x B x H | 261 x 190 x 132 mm |
| Weight | 3.9 kg |
| Marking field | 50 x 100 mm |
| Resolution | 0,1 mm |
| Speed | Depending on marking parameters |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE1, WE2, WE2 4mm, WE2 long, WP2 |
| Power supply | 230V, 50Hz / optional 115V, 60Hz |
| Compressed air | max.6 bar, 8 mm |
| Technical Data: 8/14 E | |
|---|---|
| D x B x H | 381 x 255 x 170 mm |
| Weight | 7.4 kg |
| Marking field | 80 x 140 mm |
| Resolution | 0,1 mm |
| Speed | Depending on marking parameters |
| Controller | UMC 112, UMC eco, UMC box |
| Needle system | WE1, WE2, WE2 4mm, WE2 long, WE4, WP2 |
| Power supply | 230V, 50Hz / optional 115V, 60Hz |
| Compressed air | max.6 bar, 8 mm |
We have a complete range of accessory parts available for you. Here are a few examples in the needle embossing-/scribing-sector:
- Rotation axes for round parts, so that the marking needle is always perfectly positioned on the object to be marked
- Vertical axes in all versions (manual, electric, pneumatic, fully automatic)
- Barcode scanner for input and activation of data to be marked
- 2D code cameras for automated reading of previously marked data
- Needle systems for the most varied applications
- Housing variants for your operating environment
- Replacement parts of all kinds…
We would be happy to discuss anything further with you personally.
