Design
Compact, robust housing in “TableTop” design
Sliding door
Sliding door for quick insertion of workpieces
Maintenance
Low maintenance, almost noiseless operation possible
Plug and play

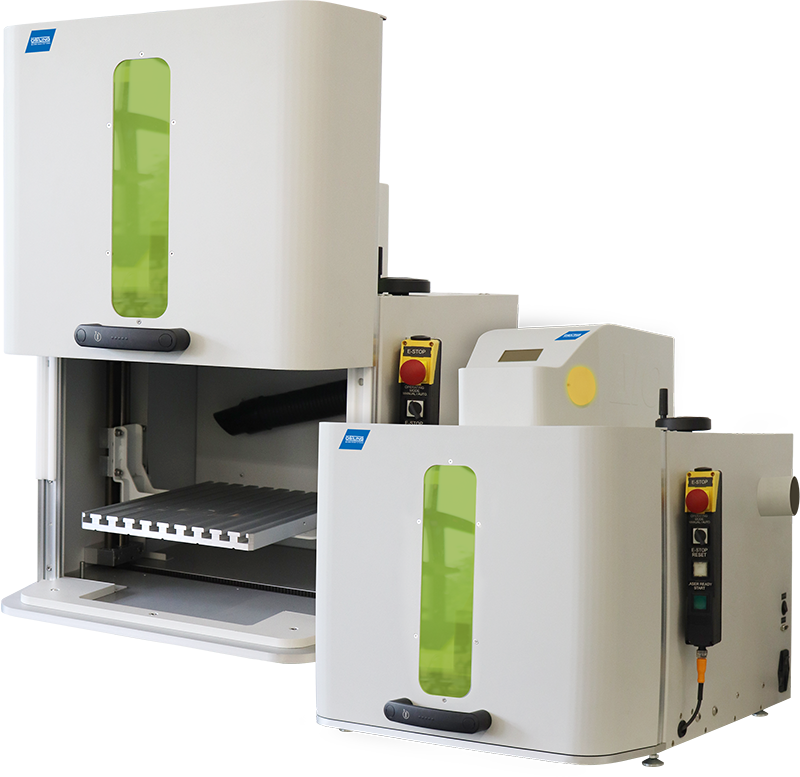

The AIOBox is a “plug and play” laser station. It can be easily connected to a PC via USB or network cable (LAN) and is immediately ready for use. The very simple start-up and the convenient equipment make the AIOBox a comfort model. Despite the compact design, the AIOBox has an exceptionally large loading volume. Depending on the lens used, a marking area of up to 200 x 200 mm can be used.
The AIOBox is equipped with two separate safety circuits and meets the requirements of the Performance Level (PL e) according to EN ISO 13849-1.
The laser is safely switched off when the sliding door is opened and an emergency stop device is also available.
The suction system is prepared as standard for all AIOBox variants and the focus aid / pointer is available for all models.

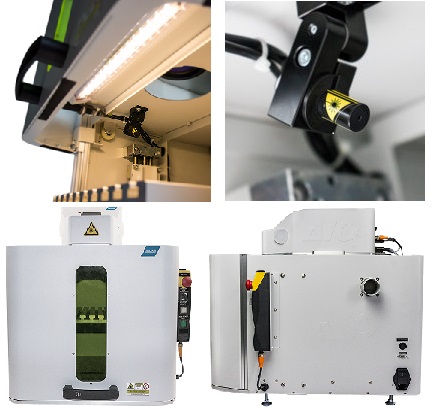

The AIOBox is illuminated from the inside with LED for a clear view.
The AIOBox is compact and extremely quiet so that you could use the laser station undisturbed in the office or in a quiet environment.
With the proven XS Designer software, automated markings, such as consecutive serial numbers, 2D codes (DataMatrix), etc. can be easily implemented.
Simple and compact
The AIO laser is the most compact, Q-switched DPSS laser. AIO laser systems are offered in a robust and light monoblock design and enable a wide range of different marking applications that are also suitable for micromachining.
Thanks to the “All In One” monoblock design, there is no need for external optical fiber conductors and other sensitive cable connections for system integration. Optionally, the AIOBox can also be expanded if you want to mark larger workpieces, for example.
The easy and safe integration, even in confined spaces, is another plus of the AIO laser system.
Competitive in the fibre laser sector
The diode durability of the AIO laser systems can be favourably compared to fibre laser systems. During maintenance it is only necessary to change the diode packs instead of replacing the whole laser unit.
In addition, the power consumption of the AIO laser systems is highly efficient.
The AIOBox is available in the variants AIOBox P, AIOBox M and AIOBox G+.
Installation
Reduced installation effort, Systema 2 library and 3D STEP model available on request
Interfaces
Galvanically isolated interfaces (I/O’s, USB, Ethernet), optional Profinet/ProfiBus integration
Maintenance
Low maintenance, almost noiseless operation possible
Quality
Unsurpassed flexibility with high quality
Cooling
Thermoelectric air cooling
Development
Many system components from own development
OEM
OEM models and complete solutions available
Software
User-friendly Windows-based software
Special machines
Precisely adapted to your needs through an in-house special machine construction
Strengths of AIOBox
- Maximum safety (laser protection class 1) with safe shutdown according to EN ISO 13849-1
- Mobile and very fexible to use, extremely low weight, compact “TableTop” design
- Smooth, manual sliding door for quick insertion of the parts to be marked
- Large ergonomic loading area for easy manipulation of the parts to be marked
- Laser protective glass window for safe setting up and monitoring of the marking process
- Large load volume of 400x400x300mm (L x W x H), up to a max load of 40 kg
- Efficient power supply from 100 – 240 VAC – 50/60 Hz (fanless power supply)
- T-slot plate for quick attachment and setup of devices
- Low-maintenance, virtually silent operation possible
- Expandable (e.g., 2D Code Reader)
- LED illuminated load area
All in One
- Laser Safety Housing Class 1
- Laser System From 6 Watt
- Integrated Supply Unit
- Integrated Focus Finder
- Connector for External Extraction
 |  |  |
|
|---|---|---|---|
| Wavelength | 1064 nm | 1064 nm | 532 nm |
| Laser class |  |
||
| Pulse rate | 10 KHz - 100 KHz | 10 KHz - 100 KHz | 1 KHz - 100 KHz |
| Pulse length | 15 - 70 ns | 7 - 35 ns | 2 - 10 ns |
| Beam quality | < 1.5 | < 2 | < 1.5 |
| Electrical supply | |||
| Cooling | |||
| Weight | |||
| Hardware interfaces | two safe inputs up to PL e (Cat. 4) according to ISO 13849-1 |
||
| Software interfaces | |||
| Software | |||
| Operating system | |||
| Character sets | Orientation: freely rotatable Character spacing: freely selectable Circular arc writing: freely scaleable and adjustable |
||
| Graphic | Graphic import: vector (HPGL/PLT), bitmap (BMP, JPG, GIF) |
||
| Codes | 2D Codes: DataMatrix, PDF 417, QR-Code, Code 16K DXF-Type More than 60 different 1D and 2D codes in total |
||
| Further features | Freely programmable script interface for processing variable data from subroutines Text and data transfer from databases (ODBC) Excel tables | TCP/IP client User-defined masks Extensive program help and function |
||
| Options | Additional laser diode as optical focusing aid Extraction systems, Profinet / ProfiBus, AS-i Master integrated Remote control via external command box (e.g. start/stop, emergency stop) |
||
For our various laser marking systems we have an extensive range of accessories available. With different options you can extend the functions of our marking lasers. Below are a few examples of our comprehensive range of laser accessories:
- Various housing variants for complete solutions
- Rotation axes for round parts, so that the processing distance and laser beam are always perfectly and precisely aligned with the object to be marked
- Height axes in all possible versions (manual, electric, pneumatic, fully automatic)
- Axis control UMC box Laser For controlling two additional functions, such as vertical axis and positioning axis. The rotary indexing table and magazine can also be controlled. With this optional laser accessory, cycle times for laser marking can be greatly reduced.
- Barcodescanner for convenient reading and activating of data to be marked
- Camera systems for automatic machine reading of previously marked data such as 1D, 2D and DataMatrix codes (Please take a look at our information on HIBC and GS1)
- Lenses for different applications / marking field sizes and workpieces / materials
- Spare parts of all kinds for our marking lasers
- Laser safety glasses for different wavelengths available on request
Anybus Communicator PROFINET IRT
The Anybus Communicator allows you to integrate serial devices (RS-232/422/485) into a PROFINET-IRT network.
The Anybus Communicator is a field-proven and reliable protocol converter that connects non-networked devices to PROFINET-IRT. The Com-municator carries out an intelligent protocol conversion and provides the serial data of the higher-level PLC as I/O data.
The Communicator is a compact stand-alone gateway for IP20 and DIN rail mounting that requires a 24-volt power supply. It complies with the current PROFINET-IRT specification and has been successfully tested for network compatibility.
The XS Designer software combines marking software, CAD editor, parameter and interface management, sequence programming and diagnostic tools. This Windows-based marking software makes laser technology easy to master.
