MagicPin – the cost effective and high quality entry into pin marking.

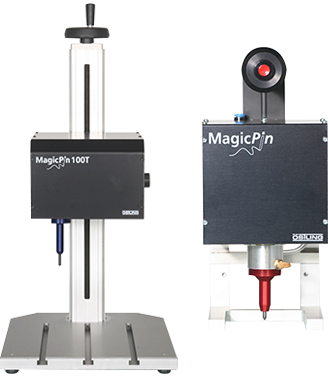

While the table model, MagicPin 100 T, provides excellent flexibility with its large marking area of 10cm x 10cm, the hand-held model, MagicPin H, is lighweight and compact providing maximum flexibility in everyday work.
These machines are not about saving on quality. The MagicPin dot peen series are manufactured in Germany and are suitable for industrial applications. Information such as logos, part numbers, Data matrix codes and serial numbers can be easily created.
The competitive price is due to their limited expandability. That is, at high quality, the functionality of the systems are suitable for all major operations – but don’t offer the additional expandability of the PinMark range, such as rotation axis, automatic height axis, nameplate magazine etc. The marking heads are controlled either via the UMC Eco or the UMC box.
All in all, MagicPin is an ideal introduction to your dot peening needs.
Spread the cost of your new dot peen system with our Hire Purchase facility, from only £89 per month. Click here for more information.

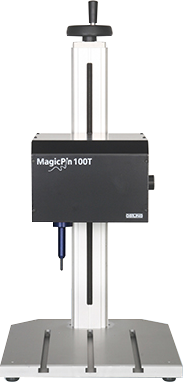

Technical Data: MagicPin 100T
| D x B x H | 188 x 207 x 141 mm |
| Weight | 4.5 kg |
| Marking field | 100 x 100 mm |
| Resolution | 0.1 mm |
| Speed | Depending on marking parameters |
| Software | Embedded Linux |
| Controller | UMC eco, UMC box |
| Needle system | WE2, WP2 |
| Power Supply | 230V, 50Hz / optional 115V, 60Hz |
| Compressed air | Max.6 bar, 6 mm |
Technical Data: MagicPin H
| D x B x H | 130 x 115 x 260 mm |
| Weight | 2.5 kg |
| Marking field | 30 x 50 mm |
| Resolution | 0.1 mm |
| Speed | Depending on marking parameters |
| Software | Embedded Linux |
| Controller | UMC eco, UMC box |
| Needle system | WE3, WP3 |
| Power Supply | 230V, 50Hz / optional 115V, 60Hz |
| Compressed air | Max.6 bar, 6 mm |
We have a complete range of accessory parts available for you. Here are a few examples in the needle embossing-/scribing-sector:
- Rotation axes for round parts, so that the marking needle is always perfectly positioned on the object to be marked
- Vertical axes in all versions (manual, electric, pneumatic, fully automatic)
- Barcode scanner for input and activation of data to be marked
- 2D code cameras for automated reading of previously marked data
- Needle systems for the most varied applications
- Housing variants for your operating environment
- Replacement parts of all kinds…
We would be happy to discuss anything further with you personally.
