For PinMark dot peen and scribe systems

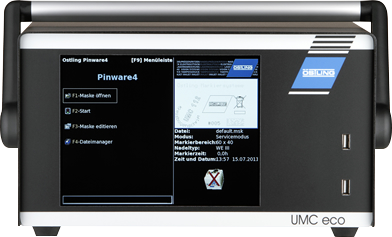

Needle embossing/scoring control UMC eco – now with large high-resolution colour display

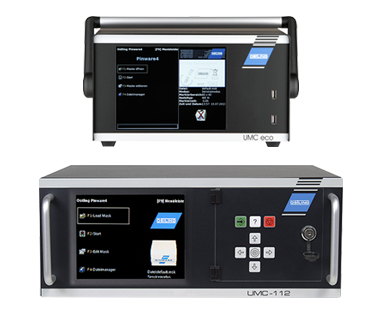

The UMC eco series can be used to control all our needle embossers and scribers of the PinMark series.
With this device all kinds of marking data are sent to the end systems. These marking data contain for example:
- 2D codes (DataMatrix)
- Serial numbers
- Company logos and other graphics
- All other conceivable product data
Various communication interfaces make it possible to send the corresponding information to the controller. Data that can be changed, such as date, time, batch number, material composition, etc., are automatically generated by the controller according to predefined criteria. Furthermore, it is possible to manipulate entered data with the help of the integrated script interface.
Technical Data
| Computer | Ostling PC control with Embedded Linux operating system and 400 MHz clock frequency, serial interface, USB, Ethernet, Profinet, Profibus, EtherNet / IP, DeviceNet, and SVGA interface. IP31 protection against contact with tools and against foreign bodies with a diameter> 2.5 mm, protection against vertically falling water drops. |
| Storage | Compact Flash 512 MB |
| Engine Control | 2-axis motor control for bipolar control of 2-phase stepper motors |
| Inputs/ Outputs | Digital, optional external file selection (I / O BU3), 2 safety inputs up to PL e (DIN EN 13849-1) |
| Display | SVGA 800 x 600 pixels, large marking preview for checking the marking data |
| W x D x H | 310 x 300 x 170 mm (without handle, plug and cable) |
| Keyboard | Integrated membrane keyboard / external keyboard |
| Interfaces | 4 x USB interface (keyboard, mouse, USB stick, …) Ethernet: SMB, control protocol RS232 / RS485: control protocol, 24V I / O: start, E-Stop, file selection / Profibus DP |

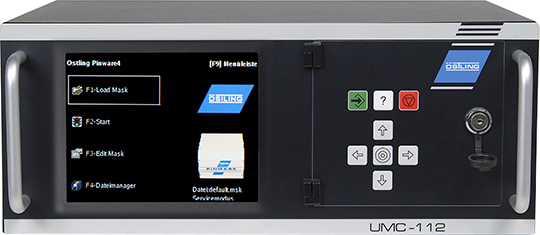

The UMC 112 can be used to control all our needle embossers and scribers of the PinMark – series.
This device sends all types of marking data to the end systems. This marking data includes, for example:
- 2D codes (DataMatrix)
- Serial numbers
- Company logos and other graphics
- All other conceivable product data
Data that can be changed, such as date, time, batch number, material composition, etc., are automatically generated by the controller according to predefined criteria.
Various interfaces make it possible to send the corresponding information to the controller beforehand. Using a barcode scanner, for example, employee and extensive material information can be scanned in and later embossed onto the product as a compact 2D code (this is just one of many examples).
The use of the Embedded Linux operating system generates four benefits for you:
- Microsoft Windows™ license costs not applicable
- User-friendly, intuitive interface
- Special solutions for special requirements easier to implement
- Highest stability in everyday industrial use
Technical Data
| Computer | Ostling PC control with Embedded Linux operating system and 400 MHz clock frequency, serial interface, USB, Ethernet, Profinet, Profibus, EtherNet / IP, DeviceNet, and SVGA interface. IP31 protection against contact with tools and against foreign bodies with a diameter> 2.5 mm, protection against vertically falling water drops. |
| Storage | Compact Flash 512 MB |
| Engine Control | 2 axes, optionally 3 axes |
| Inputs/ Outputs | Digital, optional external file selection (I / O BU3), 2 safety inputs up to PL e (DIN EN 13849-1) |
| Display | SVGA 800 x 600 pixels, large marking preview for checking the marking data |
| W x D x H | 443 x 352 x 183mm |
| Keyboard | Integrated membrane keyboard / external keyboard |
| Interfaces | 4 x USB interface (keyboard, mouse, USB stick, …) Ethernet: SMB, control protocol RS232 / RS485: control protocol, 24V I / O: start, E-Stop, file selection / Profibus DP |
Pinware 4 Software
| File management | Integrated in control |
| Data transfer | USB, LAN |
| Interface | RS232 |
| Marking templates | 31 text fields with up to 50 characters each |
| Character fonts | Standard character font ‘li.chr’ according to DIN 1451, others on request (eg OCRA) Character fonts on BGI base can be used |
| Character height | 0.5 – 99.9mm, free adjustment |
| Character spacing | 0 – 10mm, free adjustment |
| Character width | 0.1 – 10mm, free adjustment |
| Marking area positioning | Move the needle to the marking position Save the position (‘teach in’) or input co-ordinate values Display of all marking data as preview and ‘real time’ during marking process (WYSIWYG) |
| Character direction | Horizontal, vertical and at any angle Circumferential, clockwise or anti-clockwise |
| Additional functions | Subsequent numbering Automatic date, week, day of the year, month, day, time Shift index Query of text (also with bar code reader), eg before each marking |
| Special characters | Import of HPGL plotting files (*.PLT), free choice of scale 2D code (DataMatrixTM) |
| Process control | Plain text and graphic display of the active function Status signals on digital I/O level |
